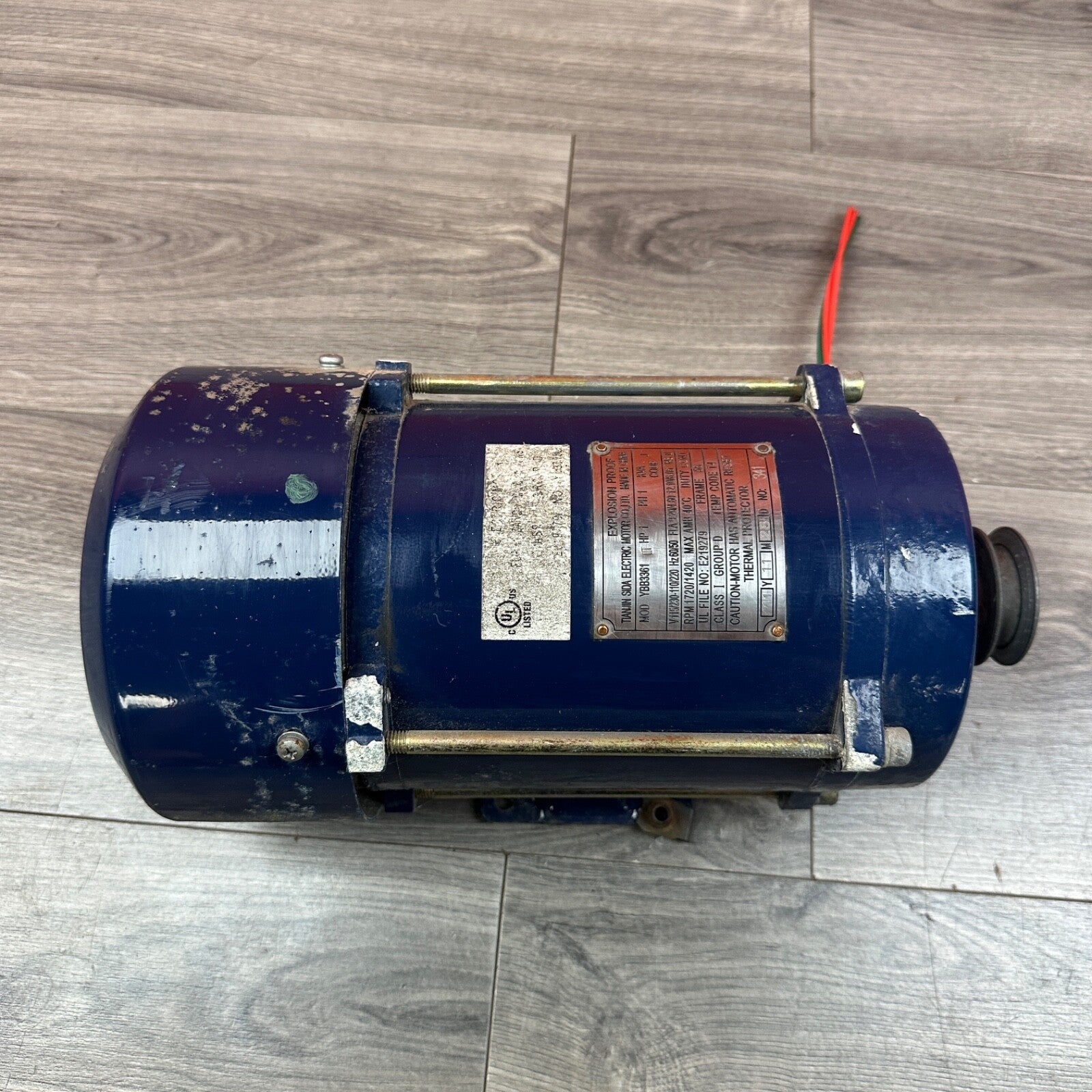

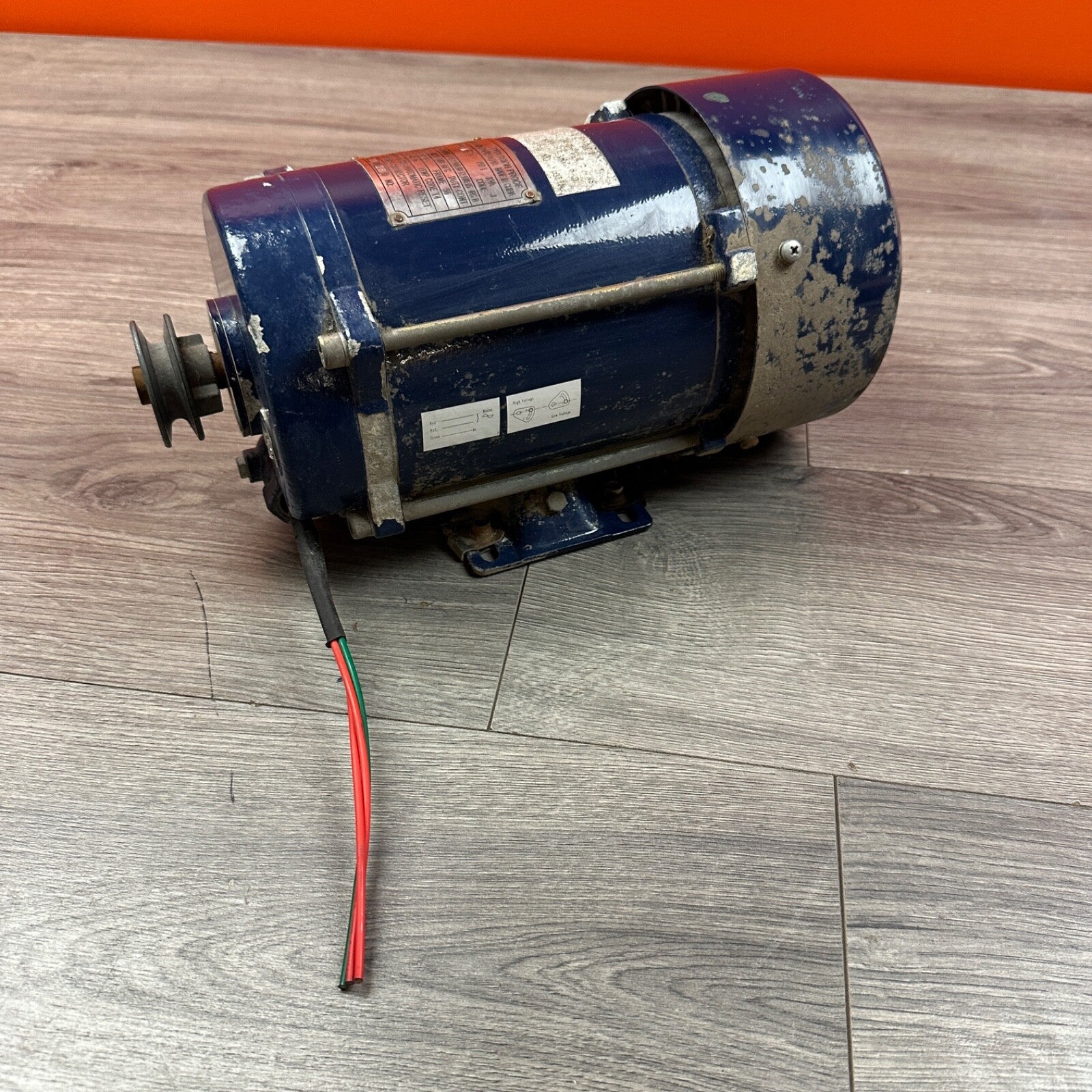

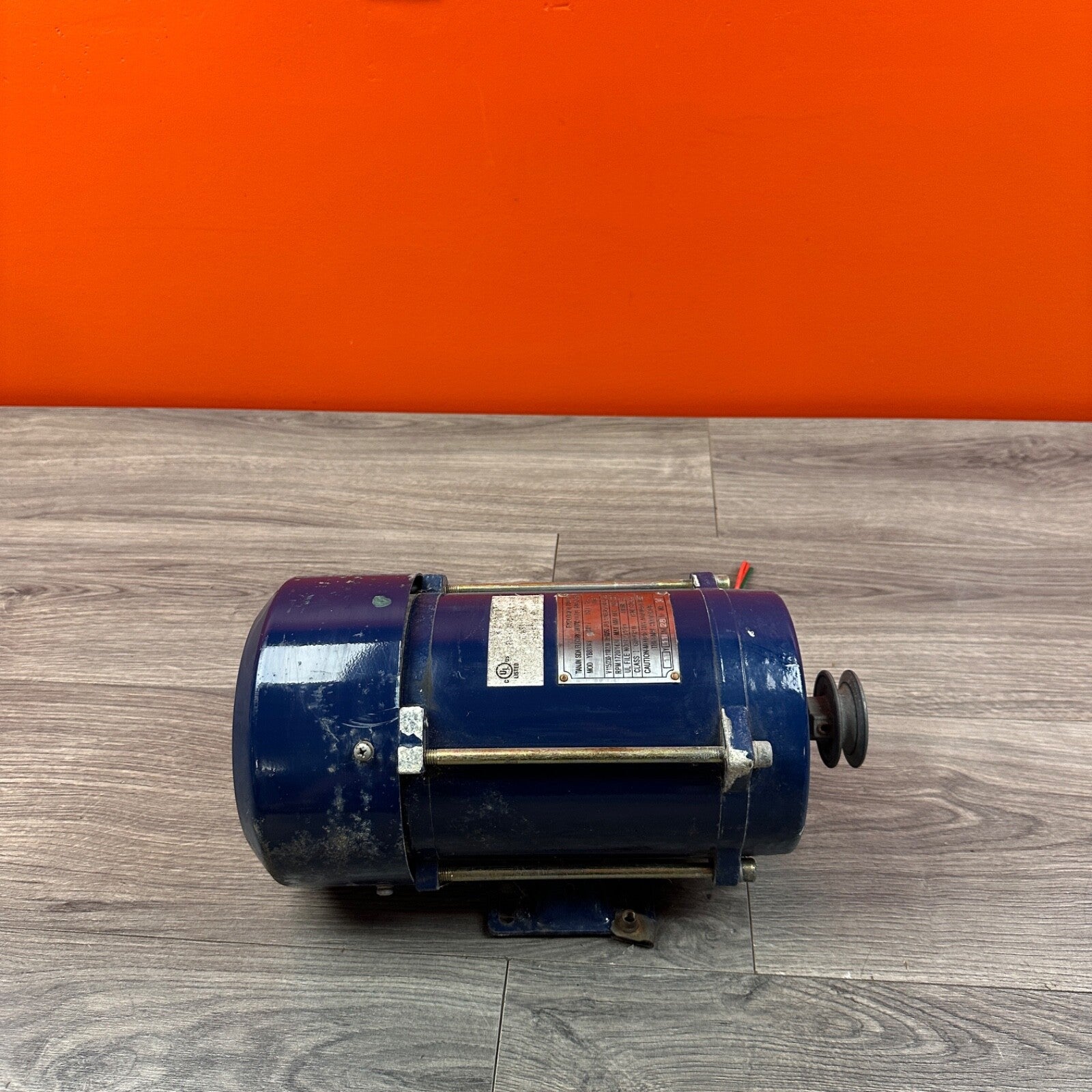

Condition: Used - Good working condition. This motor was removed from a working fuel dispenser that had been upgraded to a newer model. Tested and runs smoothly.
Quantity: (1) Motor with pulley attached
MOTOR SPECIFICATIONS
Manufacturer: Westinghouse
Model Number: 308P631
Horsepower: 3/4 HP (0.75 HP)
Speed: 1725 RPM
Voltage: 115/230V
Phase: 1 Phase (Single Phase)
Frequency: 60 Hz
Frame Size: 56
Rotation: Standard pump rotation
Mounting: Rigid base mount
Enclosure: ODP (Open Drip Proof)
COMPATIBLE APPLICATIONS
This motor is an OEM replacement for the following Gasboy and Tokheim consumer series fuel pumps:
Gasboy 20 Series
Gasboy 25-28 Series
Tokheim 420 Series
Tokheim 425-428 Series
Gasboy Model 250 Pump and Motor
CROSS REFERENCE PART NUMBERS
OEM: Westinghouse 308P631
SVI: BP-4218-25
SVI Ref#: F37683
WHAT YOU GET
Westinghouse 308P631 Electric Motor (1)

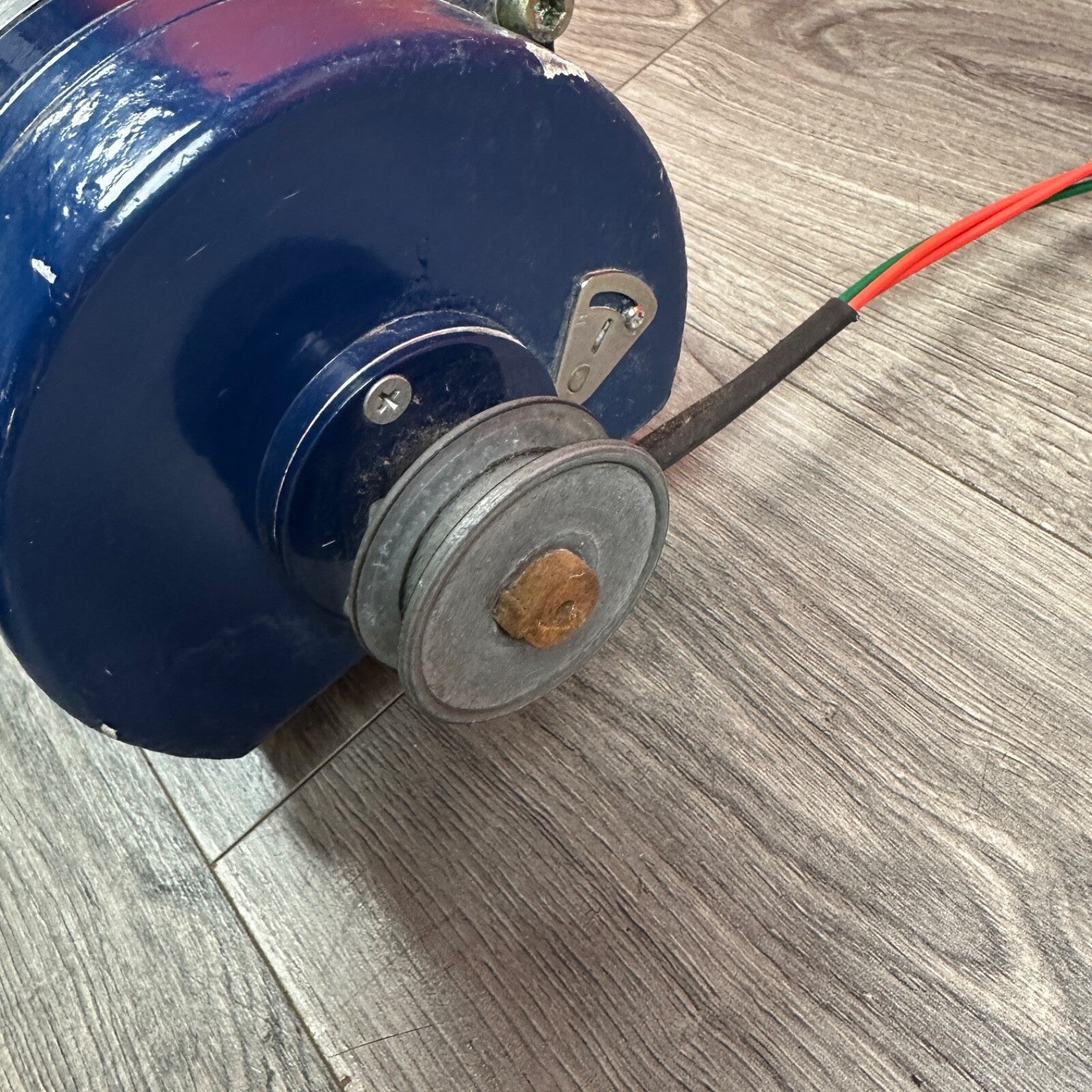

Pulley attached
Includes all wiring/pigtail
Ships from Derby, Kansas (Wichita area). Fast processing - ships next business day. Check our other listings for more industrial surplus motors and parts.
